| Place of Origin | Jiangsu, China |
| Brand Name | OUCO |
| Certification | ISO,CE, BV, API-2C |
| Model Number | OUCO-4.6T6.6M&0.9T21.6M-KTB |
Product Description:
The OUCO 0.9T21.6M Knuckle Telescope Boom Offshore Crane is a cutting-edge solution designed to meet the multifaceted lifting requirements of offshore and marine operations. Its advanced engineering and robust construction provide unparalleled performance in a variety of challenging maritime environments.
Technical Specifications:
Dual Lifting points: 4.6T at 6.6M Radius: Designed for heavier loads within a close working range. 0.9T at 21.6M Radius: Ideal for lighter tasks requiring extended reach.
Working Radius: Ranges from 2M to 21.6M, ensuring versatility across different operational needs.
Hoisting Speed: Variable speed ranging from 0 to 12M/min, providing smooth and precise lifting control.
Hook Travel: 30M, offering substantial vertical reach for deep-lifting applications.
Slewing Performance: Full 360° continuous rotation at 0.6 revolutions per minute, allowing for efficient and seamless load handling.
Design and Construction: The knuckle-telescopic boom design facilitates enhanced maneuverability, especially in confined or restricted spaces. Heavy-duty construction ensures durability and resilience in harsh marine environments.
Applications:
Cargo Handling: Transfer of goods between vessels or between ship and shore with precision.
Maintenance Support: Lifting equipment and tools for offshore platform maintenance.
Rescue and Recovery Operations: Suitable for handling emergency equipment and small rescue boats.
Subsea Deployment: Effective for lowering and retrieving equipment below the waterline.
Advantages:
Parameters
| Parameter | Value |
| Safe Working Load (SWL) | SEE LOAD CHART |
| Max. Working Radius | 21.6M |
| Min. Working Radius | 2M |
| Hoisting Speed (WINCH) | 0~12m/min |
| Hook Travel | 30m |
| Slewing Speed | 0.6r/min |
| Slewing Angle | 360° |
| First Luffing Time | ~50s |
| Second Luffing Time | ~50s |
| Booms Extension Time | ~150s |
| Working Condition (Hsig) | |
| Trim | ≤2° |
| Heel | ≤5° |
| Max. Wind Speed (Working Condition) | 20m/s |
| Max. Wind Speed (Parking Condition) | 55m/s |
| Elec-Motor Power | Y225M-4-H |
| Power | 45kW |
| Speed | 1470r/min |
| Power Resource | AC380V/50Hz/3P |
| Protect Class | IP56 |
| Insulate Class | F |
| Working Type | S1 |
| Ambient Temperature | -10° ~ +40° |
| Model | Marine crane |
GA Drawing
Lifting Height and Load Chart: The crane achieves a lifting height of up to 26M. The load chart highlights optimal performance across different working distances, ensuring safe and reliable operations.

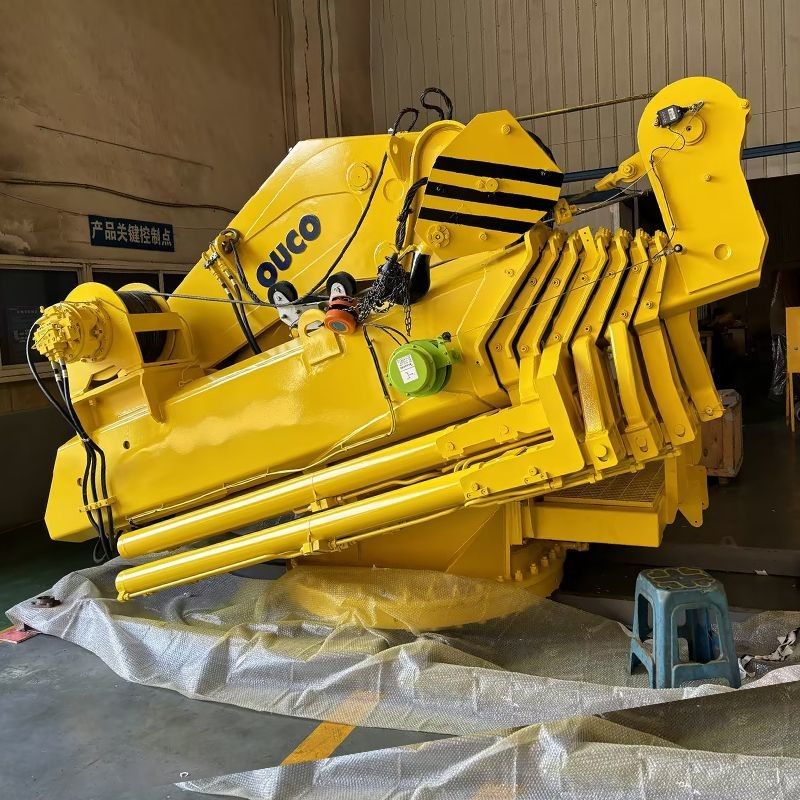

Product Picture
Production Process
Company Profile
OUCO specializes in the design, manufacturing, and customization of marine and offshore cranes. With decades of experience in the industry, OUCO delivers tailored lifting solutions that prioritize safety, efficiency, and innovation. The 0.9T21.6M Knuckle Telescope Boom Offshore Crane is a testament to OUCO's commitment to excellence, featuring state-of-the-art technology and robust construction for demanding maritime applications.
OUCO has specialized design team, production and processing team, welding team, painting team, installation team, transportation team and sales team. The company has more than 150 employees, 20 technicians, including 5 with senior titles, 10 with intermediate titles, 50 welders certified by major institutions such as CCS and ABS. And many flaw detectors, quality system auditors and inspectors certified by professional institutions.
Customer Build
OUCO Group has been specializing in the field of cranes for more than 10 years. OUCO can design and manufacture any type of cranes, grabs and other handling equipment according to your requirements.
To better protect the safety of our customers' goods, we provide professional, environmentally friendly, convenient and efficient packaging services. Our comprehensive service system results in a high level of customer satisfaction.
| Brand | OUCO |
| Spare parts | 1 set ( If needed, more spare parts are available to be provided according to customers' requirements ) |
| Warranty | 1 year( If needed, warranty time is available to be extended according to customers' requirements ) |
| Packing | container |
| Delivery | Standard product : 1month Customized product: 2 months Certified products: 3-4 months |
Our factory has state-of-the-art production and testing equipment, such as CNC milling machine, gantry crane, large-scale machining center, modular machine tools, cold shears, etc. We can produce all kinds of customized equipment according to your needs and ensure high-precision machining.
Pre-Sales Service
1. Inquiry and consulting support.
2. View our Factory.
3. Check the load test before shipment.
After-Sales Service
1. Engineers are available to serve machinery overseas.
2. Instruct your workers how to install and use the machine.
3. 24 months of free maintenance.
We regularly participate in prestigious maritime trade shows around the world. Our engineers are professional and own high-level English skills, rich engineering knowledge and working experience.
At previous exhibitions, we have established strong long-term cooperation with many customers!
OUCO factory is certified by SGS, 1S09001, CE, BV, CCS, and other authoritative institutions.
For more details, please feel free to contact us.Welcome to visit our factory!
