| Place of Origin | Jiangsu, China |
| Brand Name | OUCO |
| Certification | CE, ISO |
| Model Number | OUCO-ECO Hopper-00 |

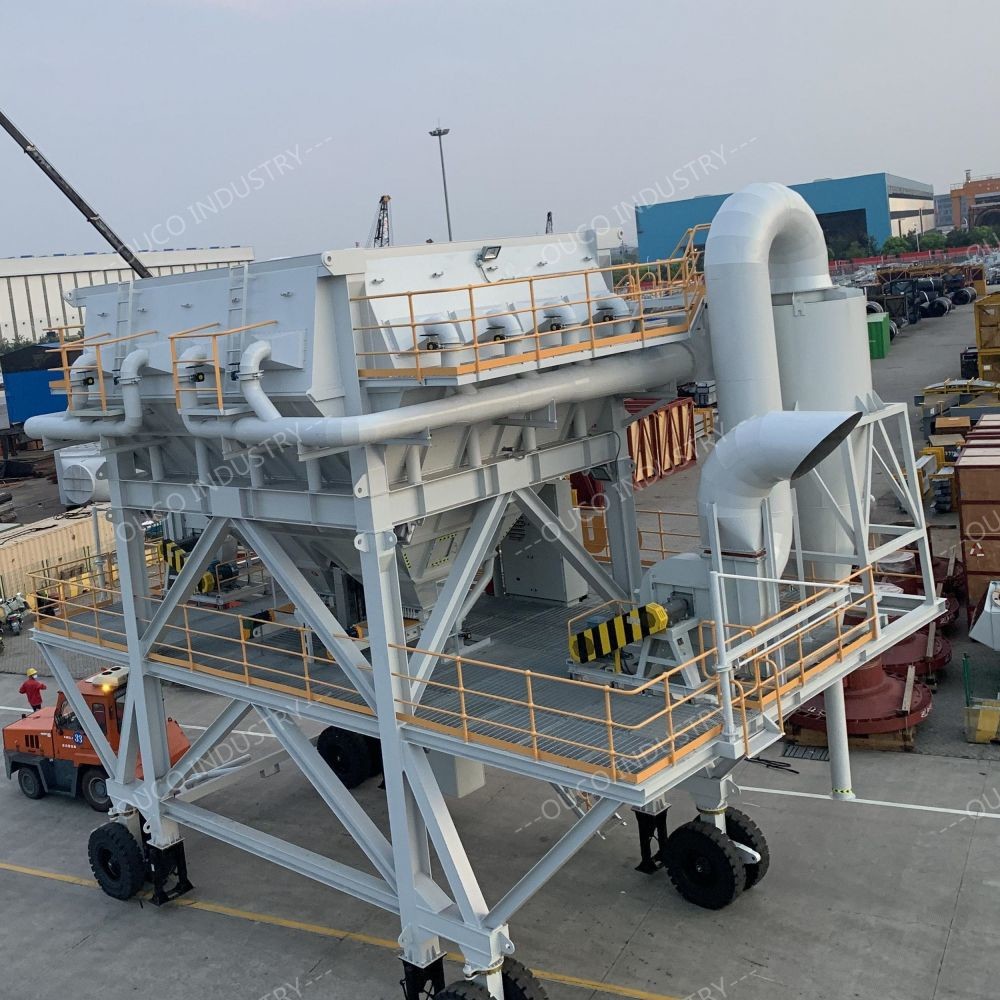

40 cube meter type mounted Eco-Hopper to receive wood pellets from vessel, which will be used for unloading at the Quay area via 13 m³ capacity Grabs and shall discharge to a container on truck.
The Eco-Hopper installation under normal operating conditions will achieve a peak unloading rate of 400 tons /h and an average rate of 260 tons /h. This rate will be dictated by the grab cycle. It is calculated by the grab cycle by 2 minutes per cycle.
| Brand name | OUCO |
| Construction | Steel |
| Storage capacity | 2.5 times grab volume (Min.) |
|
Average Output Rate |
200 tonnes per hour |
|
Peak Output Rate |
260 tonnes per hour |
| Discharge capacity | 750TPH |
| Top opening | 9000mm x 10000mm (Max.) |
| Bottom opening | 800mm x 800mm (Min.) x 2 Nos. |
| Base plate | 10 thick MS |
| Liners | 8+4 ultra plate |
| Manholes | 2 Nos. (Min.) |
| Travel assembly | 4 Nos. Double wheel solid rubber tyre bogies |
| Drop legs & pads | 4 Nos. |
| Side sheeting | 3600mm x 10000mm x 2 sides |
| Dust curtain | 4000mm x 9000 x 2 sides |
| Safety handrails | All around the sides at all floors |
| Stairs/ Ladder | Inbuilt steel structure for all floors |
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
